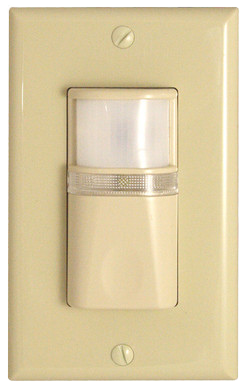

Vacancy Sensor (Manual On Auto Off) Operation Ivory

(No reviews) Write a Review
SKU:
OS183/IVORY
Availability:
Usually ships in 24 hours

Description

 Vacancy Sensor Auto ON Auto Off Operation White

  • Passive Infrared Wall Switch Vacancy Sensor
  • Rated: 120VAC, 60Hz, 0~600W
  • Replaces a standard light or fan single-pole switch
  • Works with incandescent, MLV, ELV, 1/6hp
  • Works with fluorescent and CFLs (maximum 30Watts)
  • Covers an area up to 24ft x 25ft (600ft²), 180º
  • Requires a neutral line
  • Adjusting time delay from 1 minute to 30 minutes
  • Simple three wire + ground installation takes only minutes and no adjustments are required
  • Conforms to California Title Code 24
  • UL & CUL Listed

Parameters

  • Voltage: 120VAC, 60Hz
  • Coverage: 150° or 180°, max.600 sq. ft.
  • Load requirements (single pole circuit):
  • Incandescent or fluorescent light: 0-600 Watt
  • Load Horsepower: 1/6 HP
  • Time Delay Adjustment: 1 min to 30mins
  • Operating Temp: 32° to 77°F (0°to 55°C)
  • Operating Humidity range: 95% RH, non-condensing

DOWNLOADS













Warranty Information

1 Year Unconditional Guarantee
