Product Description
CAN BE USED WITH LED RETROFIT KITS (Click Here)

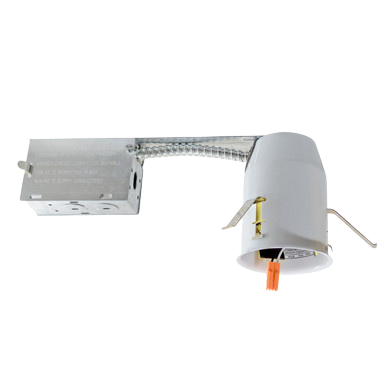

A3/LED/R is designed for remodel applications and suitable for use in ceiling where the housing can be direct contact with insulation. Remodel housing install into existing drywall or wood ceiling with no above access. Air tight construction reduces energy costs by reducing the amount of air leakages through the ceiling.
JUNCTION BOX
- Listed for through branch circuit wiring
- Contains one 1-1/8", six 7/8" knockouts and four Romex pryouts with strain relief
BAR HANGER
- Four remodel clips secure housing and accommodates 1/2” and 5/8” ceiling materials.
LISTINGS
- cUL Listed for Damp Location
- cUL Listed for Feed Through
- Certified under ASTM-E283 for Air Tight construction
- Meet California title 24 requirement
DOWNLOADS
- Submittal Sheet with Specifications (Click Here to Download
)
- Installation Instructions (Click Here to Download
)
You need Adobe Reader to view the file.
