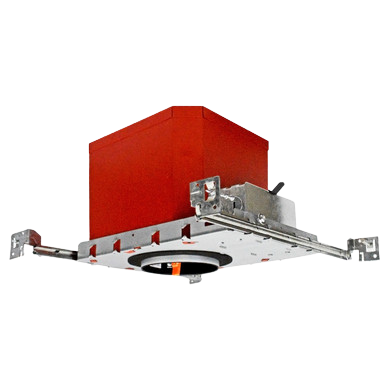

6" IC/Non-IC LED Fire Rated Housing New Construction Recessed Can

The 6" IC/Non-IC LED Fire Rated Housing New Construction Recessed Can is a 6" 2-hour fire-rated new construction LED recessed housing featuring double-wall galvanized steel construction, non-combustible fiber insulation, airtight engineering, and flexible swivel bar hangers. Designed for multi-family, commercial, and residential safety applications, it provides a crucial fire barrier that prevents flames, toxic gases, and ignition gases from passing through ceilings for up to two hours while meeting ASTM-E283 airtight and cULus safety standards.

Key Features

• UL fire-rated for up to 2 hours of structural protection in both insulated and non-insulated ceilings

• Double-wall housing lined with flexible, non-combustible fiber insulation to contain flames and gases

• Die-formed 22-gauge galvanized steel plaster frame with a removable housing for easy junction box access

• Certified airtight construction per ASTM-E283 to reduce airflow and lower heating/cooling energy costs

• Fully adjustable 13-5/8" to 25" swivel bar hangers with pre-installed captive Real nails and alignment feet

• Height-adjustable housing adjusts up to 1-1/2" to seamlessly accommodate various ceiling thicknesses

• Quick-connect wire connectors included for fast, tool-free electrical installation

• Exclusively compatible with UL or cUL Classified 6-inch LED retrofit kits

Specifications

• Model: [Product Model/Name]

• Type: 6" Fire-Rated New Construction LED Recessed Housing

• Fire Rating: UL Classified Up to 2 Hours

• Material: 22-Gauge Die-Formed Galvanized Steel

• Insulation Rating: IC Rated (Suitable for Insulated & Non-Insulated Ceilings)

• Airtight Rating: Certified ASTM-E283 Airtight

• Ceiling Thickness Adjustment: Up to 1-1/2"

• Junction Box Knockouts: One 1-1/8", one 1/2", three 7/8" knockouts, and four Romex pryouts with strain relief

• Bar Hanger Adjustment: 13-5/8" to 25" (90-degree repositionable and bendable swivel design)

• Listings: cULus Listed for Damp Location, cULus Listed for Wet Location (with specified trims), cULus Listed for Feed Through, Fire Rated

Applications

• Multi-family housing complexes, apartments, and condominiums

• High-density residential buildings and mixed-use commercial spaces

• Assisted living facilities, hotels, and dormitories requiring strict fire code compliance

• Code-required fire-rated ceiling assemblies between building floors

• New construction projects demanding premium airtight and fire-protected recessed configurations

• Installations in damp or wet locations (such as bathrooms, showers, and exterior soffits when paired with specified trims)

MUST BE USED WITH LED RETROFIT KITS (Click here)
