Product Description

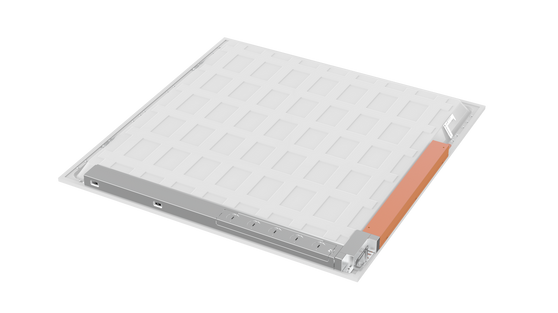

The AH Lighting 2x2 LED Panel with Integrated Emergency Ballast is a versatile commercial lighting solution designed for offices, schools, healthcare facilities, and general indoor applications. Featuring selectable wattage and color temperature settings, smooth 0–10V dimming, and built-in emergency backup operation, this panel provides reliable illumination, energy efficiency, and enhanced safety during power outages.
Specifications
- Product Type: 2x2 LED Panel with Integrated Emergency Ballast
- Size: 603 x 603 x 39 mm
- Wattage Selectable: 20W / 30W / 40W
- CCT Selectable: 3500K / 4000K / 5000K
- Input Voltage: AC120-277V, 50/60Hz
- Output Voltage: 36-43VDC
- Current: 0.37A
- Power Factor: >0.90
- THD: <20%
- CRI: 80
- Dimming: 0-10V
- Surge Protection: 1kV
- Lifetime: 50,000 Hours
- Emergency Driver Model: BLD-YT08D-056
- Emergency Output Power: 8W
- Emergency Time: 90 Minutes (1.5 Hours)
- Charging Time: 24 Hours
- Output Voltage (Emergency Driver): 25-56VDC
- Output Current: 142-320mA
- Mounting Type: Recessed Grid Ceiling
- Environment: Damp Location Rated
- Wiring: Class 1 Wiring
- Certifications: UL Listed, FCC Compliant
Key Features
- Integrated emergency LED driver
- 90-minute emergency backup operation
- 3CCT selectable (3500K/4000K/5000K)
- Wattage selectable: 20W/30W/40W
- 0-10V dimmable
- 50,000-hour lifespan
- Damp location rated
- Surge protection included
Applications
- Offices and commercial buildings
- Schools and healthcare facilities
- Retail and hospitality spaces
- Conference rooms and hallways
- Indoor grid ceiling applications
- Emergency backup lighting systems
