Product Description

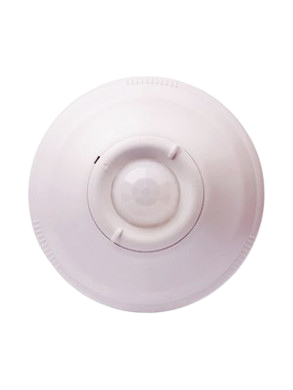

The OS2301 Ceiling Mounted PIR Occupancy Sensor delivers reliable automatic lighting control for commercial and residential spaces. Designed for energy efficiency, it detects motion using passive infrared technology and automatically turns lights ON/OFF to reduce energy waste while improving convenience and safety.
Key Features
- PIR motion detection with 360° coverage up to 15 ft mounting height
- Auto ON/OFF operation for hands-free lighting control
- Adjustable time delay (15 seconds to 30 minutes)
- Light level and sensitivity adjustments for customized performance
- Works with 120/277VAC line voltage systems
- No minimum load requirement for flexible installations
- Ideal for replacing standard wall switches
- Energy-saving solution for lighting automation
- Compact, low-profile ceiling design for clean installation
Specifications
- Voltage: 120/277VAC, 60Hz
- Load Rating:
- 800W Incandescent (120V)
- 800VA Fluorescent (120V)
- 1200VA Fluorescent (277V)
- Motor Load: 1/6 HP
- Detection Type: Passive Infrared (PIR)
- Coverage: 360° up to 15 ft mounting height
- Time Delay: 15 sec – 30 min adjustable
- Operating Temperature: 32°F – 131°F
- Humidity: Up to 95% non-condensing
- Wiring: Black (Line), White (Neutral), Red (Load)
- Size: 4.92” W x 4.92” D x 2.36” H
- Weight: 5.64 oz
Applications
- Private offices
- Conference rooms
- Break rooms & lounges
- Storage areas
- Restrooms
- Commercial buildings
- Energy code compliance projects
