Product Description

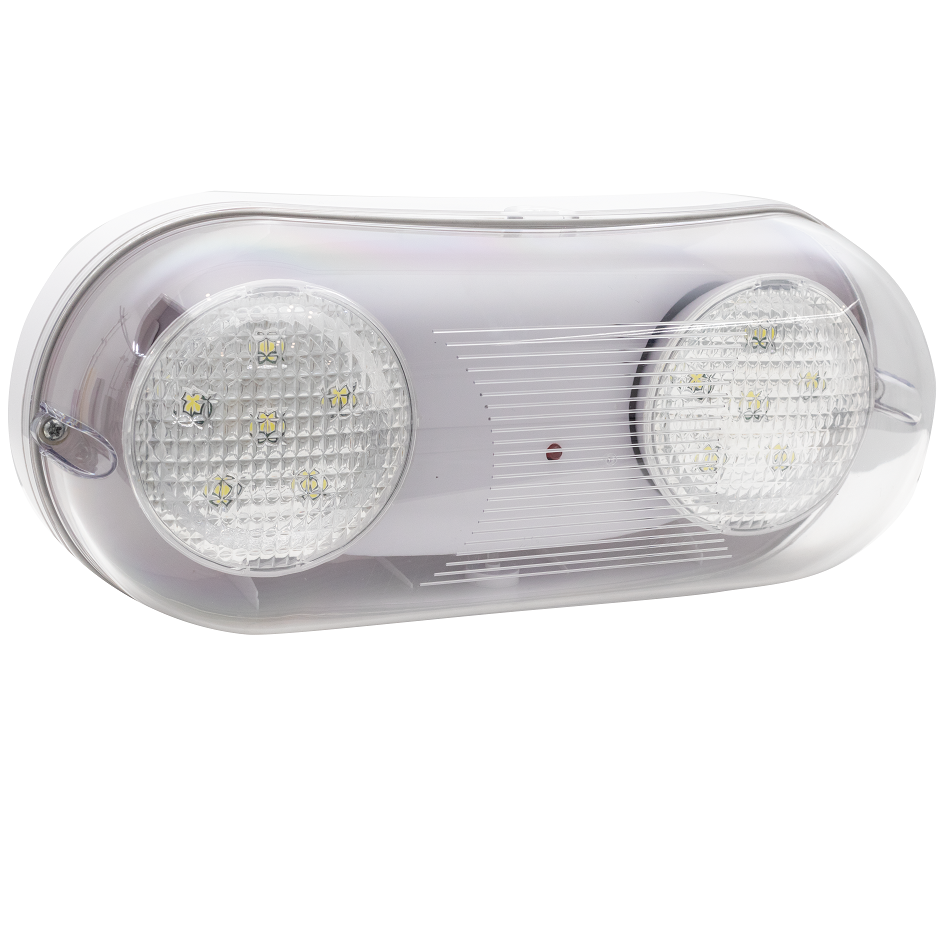

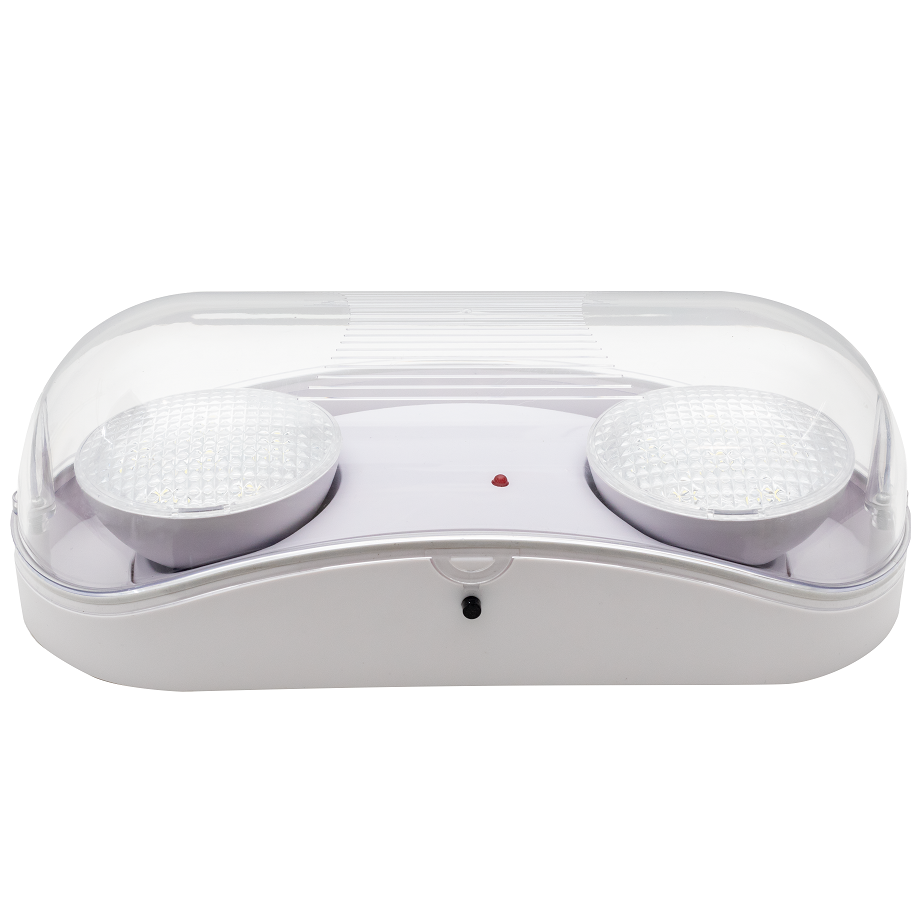

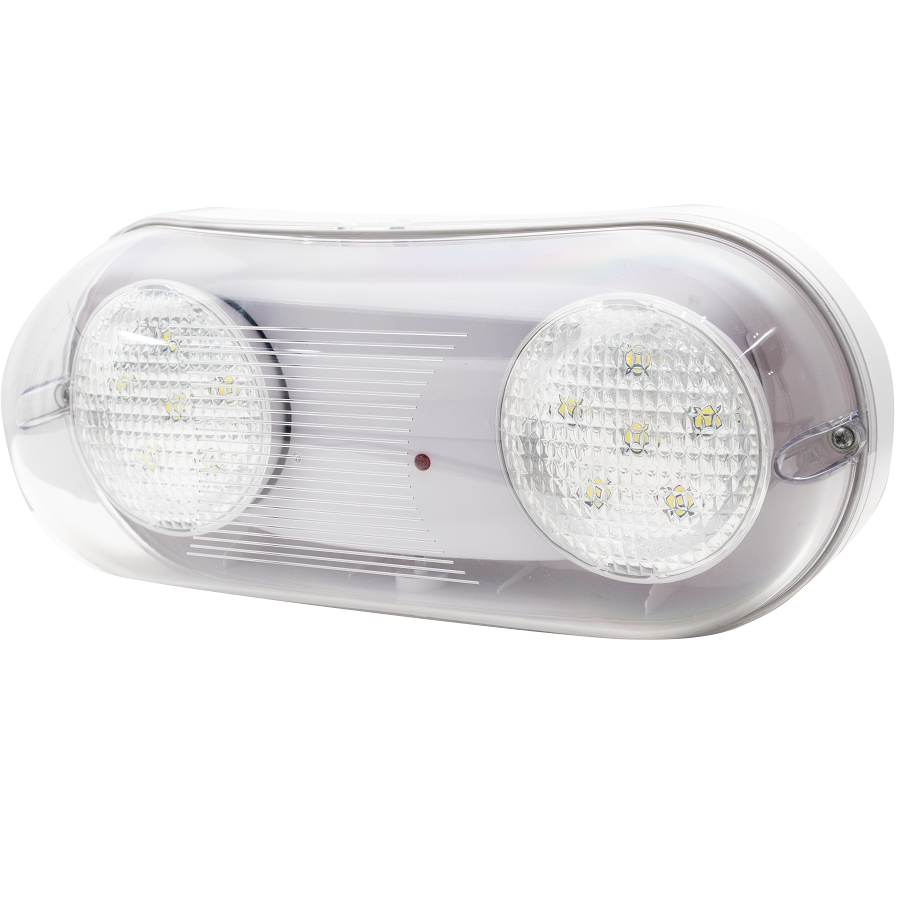

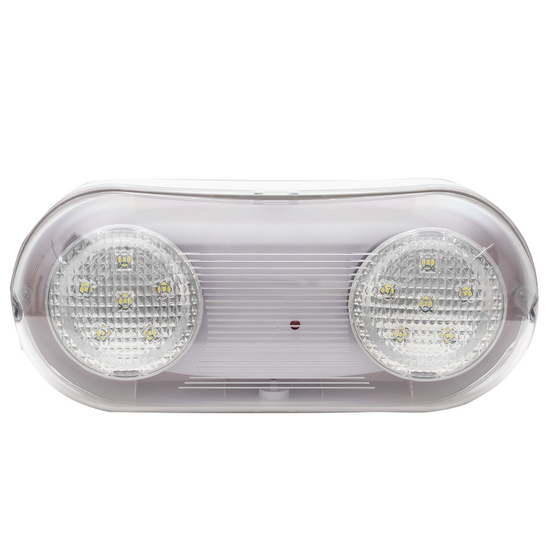

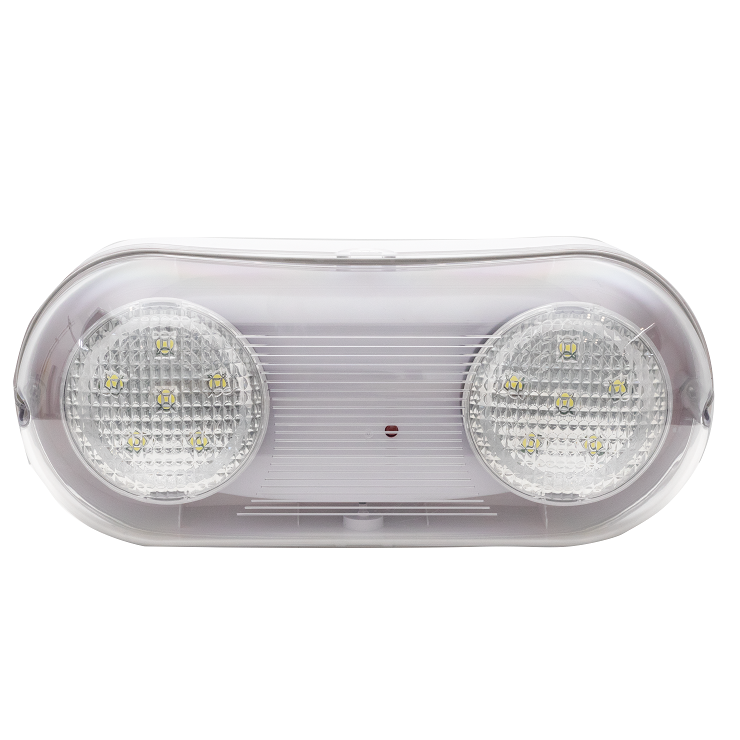

The Wet Location Emergency Light is a hardwired Emergency Light featuring a maintenance-free 3.6V NiCad battery backup, energy-efficient SMD LED illumination, IP65-rated weatherproof housing, and flexible wall or ceiling mounting. Designed for residential and commercial safety applications, it provides continuous illumination for up to 180 minutes during power outages while meeting UL 924 and CEC Title 20 safety and efficiency standards.
Key Features
-
120-347VAC 60Hz powered with maintenance-free 3.6V NiCad battery backup
-
12 pieces of 0.2W SMD LEDs providing a total of 2.4W energy-efficient illumination
-
Injection-molded thermoplastic ABS housing with a UL-94-V0 flame-retardant rating
-
IP65 protection, fully suitable for wet locations
-
Dual mounting options support both wall and ceiling installations
-
Long-lasting emergency run-time of up to 180 minutes on battery power
-
24-hour full recharge time
-
Meets UL 924, CEC Title 20, NFPA 101 Life Safety Code, NEC, and OSHA requirements
Specifications
-
Model: [Product Model/Name]
-
Type: Emergency Light
-
Power Source: 120-347VAC, 60Hz
-
Input Rating: 2.0W, 25mA
-
Battery Backup: 3.6V NiCad, Maintenance-Free
-
Illumination Type: 12PCS 0.2W SMD LED (Total 2.4W)
-
Housing Material: Fire-resistant, Flame-retardant ABS (UL-94-V0)
-
Finish: White
-
Dimensions: 304mm × 102.7mm × 130.3mm
-
Operating Temperature: 0°C to 40°C (32°F to 104°F)
-
Recharge / Discharge Time: 24 Hours / 180 Minutes
-
Ingress Protection: IP65 Rated
-
Listings: UL 924 Listed for Wet Locations, CEC Title 20 Compliant
Applications
-
Commercial and industrial buildings
-
Outdoor corridors and wet-location areas
-
Exit pathways, stairwells, and hallways
-
Residential complexes and multi-family housing
-
Properties requiring NFPA 101 Life Safety Code compliance
-
New construction and safety retrofit upgrades
