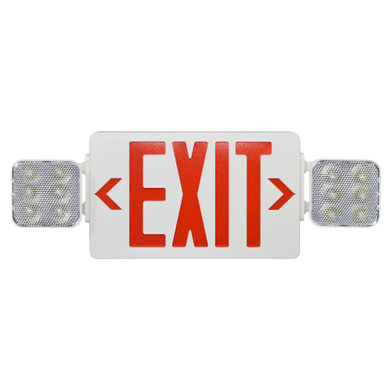

Combination LED Emergency & Exit Light Red

The Combination LED Emergency & Exit Light Red is a hardwired Combo Exit Sign & Emergency Light featuring a maintenance-free 3.6V Nickel Cadmium battery backup, an injection-molded thermoplastic ABS housing, red face illumination, and a fire-resistant architecture. Designed for commercial and industrial safety applications, it provides continuous emergency path-of-egress illumination for up to 90 minutes during power outages while meeting rigorous UL and cUL safety standards.

Key Features

• 120/277V dual-voltage AC operation with a built-in 3.6V Nickel Cadmium backup battery

• Injection-molded thermoplastic ABS housing with a UL-94V-0 flame-retardant, fire-resistant rating

• Vibrant red lettering/faceplate configuration for clear visibility along exit pathways

• Provides a code-compliant emergency discharge runtime of up to 90 minutes during utility outages

• Fully automated internal solid-state charger initiates complete battery recharge within 24 hours

• Highly efficient design pulling a maximum power consumption of 3.5W during standard operation

• Available in convenient bulk packaging options (8 units per box)

• UL and cUL listed for certified building safety code compliance

Specifications

• Model: Combination LED Emergency & Exit Light Red

• Type: Combo Exit Sign & Emergency Light

• Power Source: 120/277V AC Dual-Voltage, 60Hz

• Power Consumption: 3.5W Maximum

• Emergency Output: 4W Maximum

• Battery Backup: 3.6V Nickel Cadmium (NiCad)

• Housing Material: High-Impact Flame-Retardant Thermoplastic ABS

• Flammability Rating: UL-94V-0 Fire-Resistant

• Sign Color: Red

• Dimensions: 19.65" Width × 7.20" Height × 1.76" Depth (499mm × 183mm × 44.6mm)

• Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)

• Recharge / Discharge Time: 24 Hours / 90 Minutes

• Packaging Density: 8 units per box

• Listings: UL Listed, cUL Listed

Applications

• Commercial offices, retail establishments, and shopping complexes

• Industrial facilities, manufacturing plants, and storage warehouses

• Multi-family residential common areas, hallways, and stairwells

• Institutional structures, schools, universities, and hospitals

• Hospitality venues, hotels, theaters, and large public spaces

• New commercial construction projects and facility life-safety retrofit upgrades

Submittal Sheet with Specifications (Click Here to Download )
