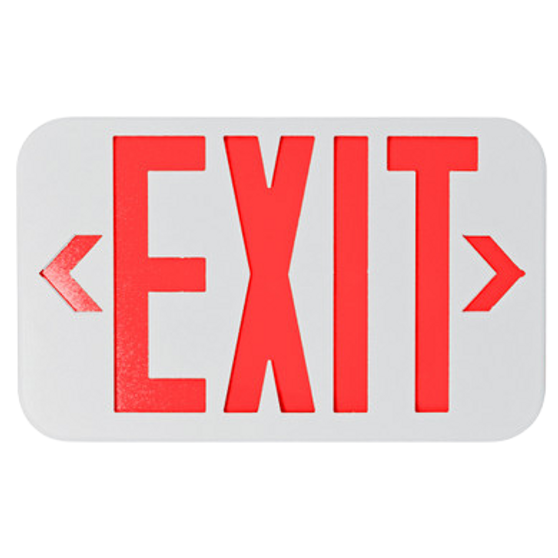

LED Emergency Exit Sign Red

The LED Emergency Exit Sign Red is a hardwired Emergency Exit Sign featuring a maintenance-free 1.2V Nickel Cadmium battery backup, an injection-molded thermoplastic ABS housing, red face illumination, and a fire-resistant architecture. Designed for commercial and industrial safety applications, it provides continuous emergency illumination for up to 90 minutes during power outages while meeting rigorous UL and cUL safety standards.

Key Features

• 120/277V dual-voltage AC operation with a built-in 1.2V Nickel Cadmium backup battery

• Injection-molded thermoplastic ABS housing with a UL-94V-0 flame-retardant, fire-resistant rating

• Vibrant red lettering/faceplate configuration for maximum visual clarity along egress paths

• Provides an emergency discharge runtime of up to 90 minutes during standard utility outages

• Fully automated internal solid-state charger initiates complete battery recharge within 24 hours

• Low energy-consumption profile pulling a maximum of 4W during active operation

• Engineered for simple wall, ceiling, or end-mount deployment variants

• UL and cUL listed for certified building safety code compliance

Specifications

• Model: LED Emergency Exit Sign Red

• Type: Emergency Exit Sign

• Power Source: 120/277V AC Dual-Voltage, 60Hz

• Power Consumption: 4W Maximum

• Emergency Output: 1W Maximum

• Battery Backup: 1.2V Nickel Cadmium (NiCad)

• Housing Material: High-Impact Flame-Retardant Thermoplastic ABS

• Flammability Rating: UL-94V-0 Fire-Resistant

• Sign Color: Red

• Dimensions: 11.61" Width × 8.18" Height × 4.57" Depth (295mm × 207.8mm × 116mm)

• Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)

• Recharge / Discharge Time: 24 Hours / 90 Minutes

• Listings: UL Listed, cUL Listed

Applications

• Commercial offices, retail establishments, and shopping complexes

• Industrial facilities, manufacturing plants, and storage warehouses

• Multi-family residential common areas, hallways, and stairwells

• Institutional structures, schools, universities, and hospitals

• Hospitality venues, hotels, theaters, and large public spaces

• New commercial construction projects and facility life-safety retrofit upgrades

Submittal Sheet with Specifications (Click Here to Download )
