Product Description

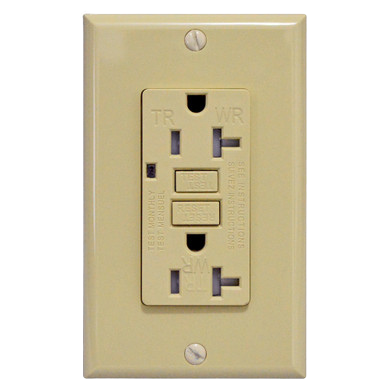

The GFCI 20AMP Tamper and Weather Resistant is a self-testing GFCI receptacle in Ivory (IV) featuring tamper-resistant (TR) and weather-resistant (WR) construction, automatic self-testing functionality, an LED status indicator, and a self-grounding design. Designed for residential and commercial safety applications, it provides continuous ground-fault protection in both indoor and outdoor environments while meeting UL, NEC, and CSA standards.
Key Features
-
Self-Test functionality with automatic cyclic testing every 15 minutes
-
Tamper-Resistant (TR) shutters for enhanced child safety
-
Weather-Resistant (WR) construction for outdoor and damp locations
-
LED status indicator for quick operational diagnostics
-
Back & side wiring terminals for flexible and easy installation
-
Self-grounding clip design for direct box-to-device grounding
-
Durable thermoplastic construction with brass contacts and silver alloy contacts for superior conductivity
-
Smart chip (MCU) protection against internal moisture
-
Meets UL 943, UL 498, CSA, NEC, and NOM requirements
Specifications
-
Model: [Product Model/Name]
-
Type: Self-Testing GFCI Receptacle (TR/WR)
-
Rating: 20A, 125V AC, 60Hz
-
Configuration: NEMA 5-20R, 2-Pole, 3-Wire
-
Color: Ivory (IV)
-
Trip Level: 4–6 mA
-
Trip Time: < 0.025 seconds
-
Interrupt Rating: 10,000 A
-
Working Voltage: 102V–132V
-
Wiring: Back & Side Wire
-
Material: Thermoplastic Body, Brass Contacts
-
Operating Temperature: -35°C to 66°C (-30°F to 150°F)
-
Humidity Range: Up to 95% RH
-
Listings: UL Listed (UL 943, UL 498), CSA Certified, NOM Certified, NEC Compliant
Applications
-
Residential spaces (bathrooms, kitchens, garages, laundry rooms, basements)
-
Commercial offices, retail spaces, restaurants, and hotels
-
Institutional schools, laboratories, public restrooms, and common areas
-
Wet and damp locations requiring code-compliant moisture protection
-
New electrical construction projects
-
Retrofit safety upgrades replacing standard receptacles
