Product Description

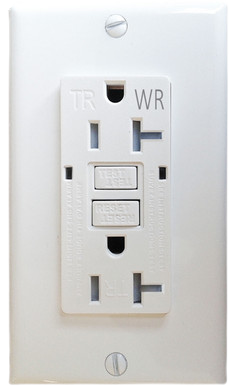

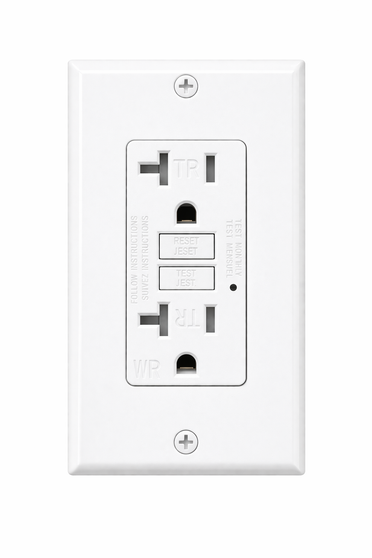

A 20A, 125V self-testing GFCI receptacle designed for reliable ground-fault protection in both indoor and outdoor environments. Features tamper-resistant and weather-resistant construction, automatic self-testing functionality, and compliance with UL, NEC, and CSA standards for safety and durability.
Key Features
-
Self-Test functionality with automatic cyclic testing (every 15 minutes)
-
Tamper-Resistant (TR) for enhanced safety
-
Weather-Resistant (WR) for outdoor and damp locations
-
LED status indicator for operational diagnostics
-
Back & side wiring for flexible installation
-
Self-grounding design
-
High-quality materials (thermoplastic body, brass contacts, steel bracket)
-
Smart chip (MCU) protection against moisture and component failure
-
Silver alloy contacts for improved conductivity and durability
Specifications
-
Rating: 20A, 125V AC, 60Hz
-
Trip Level: 4–6 mA
-
Trip Time: < 0.025 seconds
-
Interrupt Rating: 10,000 A
-
Working Voltage: 102V–132V
-
Configuration: NEMA 5-20R, 2-pole, 3-wire
-
Wiring: Back & side wire
-
Operating Temp: -35°C to 66°C (-30°F to 150°F)
-
Humidity: Up to 95%
-
Material: Thermoplastic face/body, brass contacts
-
Certifications: UL 943, UL 498, UL Listed, CSA, NEC compliant, NOM certified
Applications
-
Residential: Bathrooms, kitchens, basements, garages, laundry rooms, wet locations
-
Commercial: Offices, shopping centers, restaurants, hotels
-
Institutional: Schools, laboratories, restrooms, public areas
-
Outdoor / Damp Areas: Any receptacle near moisture or water exposure
