Product Description

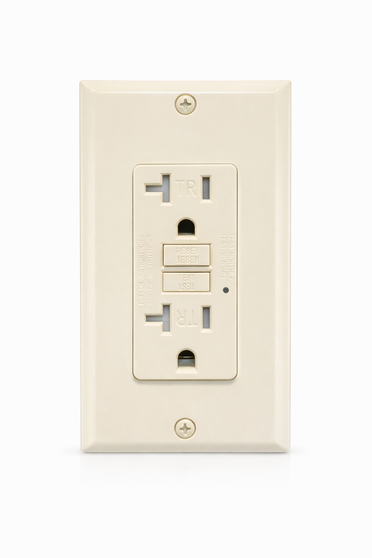

A 20A, 125V self-testing tamper-resistant (TR) GFCI receptacle designed to provide reliable ground-fault protection for residential and commercial applications. Features durable construction, automatic self-testing, and compliance with UL, NEC, and CSA safety standards.
Key Features
-
Self-Test functionality with automatic periodic testing
-
Tamper-Resistant (TR) design for enhanced safety
-
Back & side wiring for flexible installation
-
Self-grounding for added protection
-
Durable thermoplastic construction
-
Silver alloy contacts for improved conductivity
-
Smart chip (MCU) protection against moisture and component failure
-
High-strength steel mounting bracket
Specifications
-
Rating: 20A, 125V AC, 60Hz
-
Configuration: NEMA 5-20R, 2-pole, 3-wire
-
Trip Level: 4–6 mA
-
Trip Time: < 0.025 seconds
-
Interrupt Rating: 10,000 A
-
Working Voltage: 102V–132V
-
Wiring: Back & Side Wire
-
Operating Temp: -35°C to 66°C (-30°F to 150°F)
-
Humidity: Up to 95%
-
Material: Thermoplastic body, brass contacts
-
Certifications: UL 943, UL 498, UL Listed, CSA, NEC compliant, NOM certified
Applications
-
Residential: Bathrooms, kitchens, basements, garages, laundry rooms
-
Commercial: Offices, retail spaces, restaurants, hotels
-
Institutional: Schools, laboratories, restrooms, public areas
-
Wet/Damp Locations: Ideal for areas requiring ground-fault protection
