Product Description

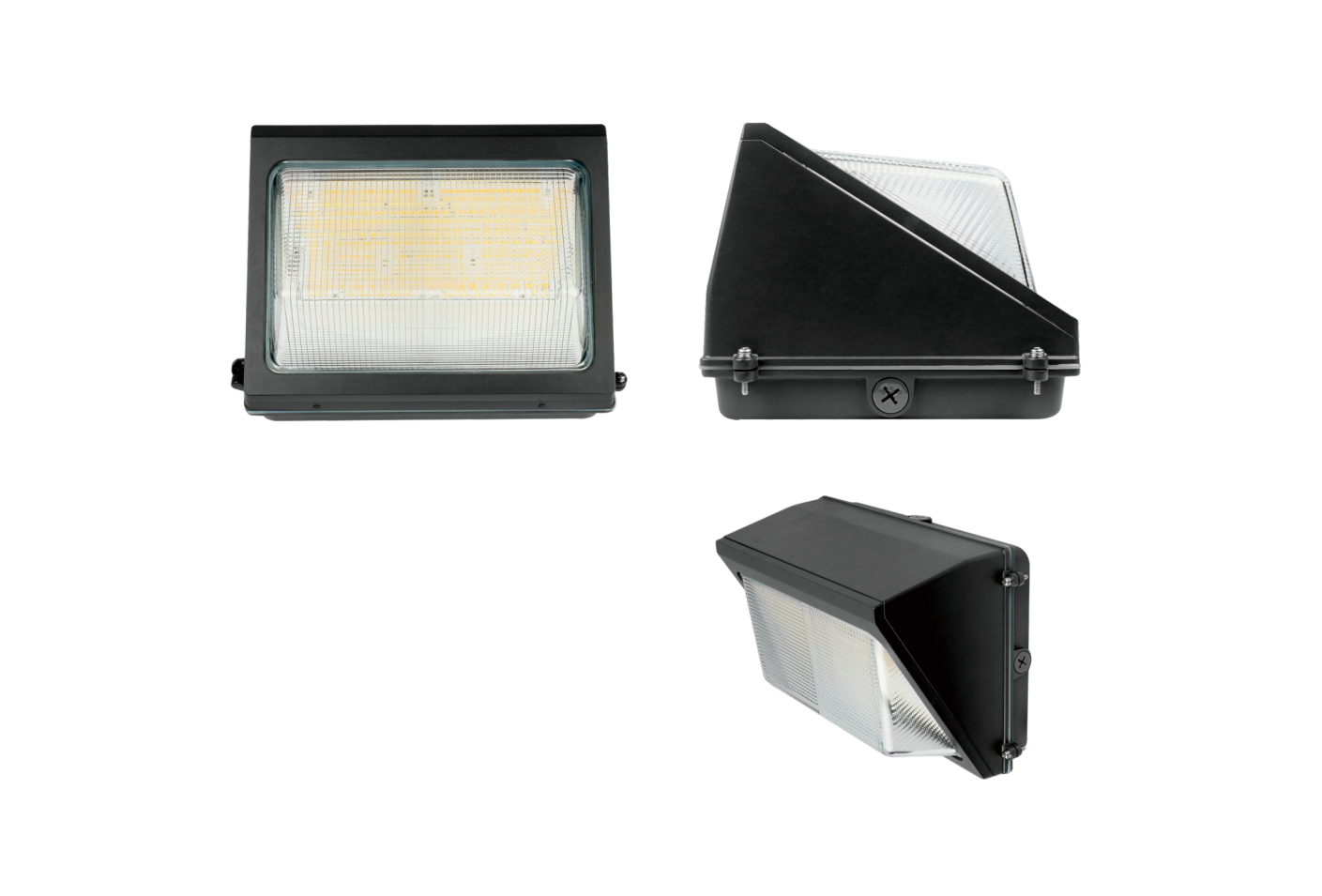

The LED Wall Pack is a high-efficiency, wattage-selectable outdoor lighting fixture designed for perimeter, security, and general area illumination. Built with durable construction and advanced LED technology, it delivers powerful, uniform light output while reducing energy consumption and maintenance costs.
Key Features
- Wattage-Selectable Versatility: On-site adjustable wattage configurations provide absolute project flexibility and custom lumen tuning.
- Ultra-High Efficacy: Delivers up to an exceptional 150 lm/W, optimizing bright lumen output while dramatically slashing energy footprints.
- CCT Selectable Tuning: Field-adjustable color temperatures scaling from 3000K warm white up to 6500K daylight.
- Wide Input Voltage Compatibility: Engineered to adapt seamlessly to commercial and industrial grids with AC120–277V or AC120–347V power configurations.
- Dusk-to-Dawn Automation: Accommodates an optional DIY plug-and-play photocell for automated, energy-efficient nighttime operation.
- Rugged Weatherproof Build: Industrial-grade, durable construction engineered specifically to withstand punishing outdoor conditions.
Product Specifications
- Product Type: LED Wall Pack
- Wattage Options: Selectable 60W / 80W / 100W / 120W
- Input Voltage Options: AC120–277V / AC120–347V, 50/60Hz
- Luminous Efficacy: 150 lm/W
- CCT Range: 3000K / 4000K / 5000K / 6500K (Selectable)
- Operating Amperage: 1.12A
- Operating Temperature Range: -40°C to +45°C (-40°F to +113°F)
- Storage Temperature Limits: -40°C to +85°C (-40°F to +185°F)
- Mounting Profile: Surface Wall-Mounted Layout
- Control Options: Dual Selectable Switches (Wattage/CCT), Photocell Compatible
Applications
- Commercial building exteriors, corporate facilities, and architectural perimeters
- Open-air parking garages, transit structures, and vehicle service lots
- Industrial manufacturing warehouses, logistics facilities, and loading docks
- Outdoor walkways, pedestrian pathways, pathways, and building entrance pathways
- High-visibility security lighting checkpoints for heavy industrial fields
