Product Description
Short Summary

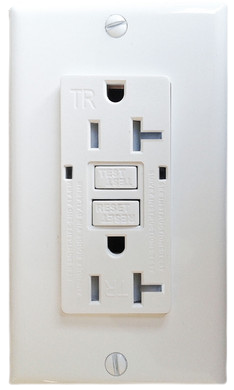

A 20A, 125V self-testing tamper-resistant (TR) GFCI receptacle in White designed to provide reliable ground-fault protection in residential and commercial environments. Built with durable materials and smart self-test technology, it ensures long-term safety and compliance with UL, NEC, and CSA standards.
Key Features
-
Self-Test GFCI with automatic cyclic testing (every 15 minutes)
-
Tamper-Resistant (TR) design for enhanced user safety
-
LED indicator for real-time device status and diagnostics
-
Back & side wiring for flexible installation
-
Self-grounding design for added protection
-
Smart chip (MCU) protects against moisture and component failure
-
Silver alloy contacts for improved conductivity and durability
-
Heavy-duty galvanized steel mounting bracket
-
High-impact thermoplastic construction (UL94 V-2 rated)
Specifications
-
Color: White (WH)
-
Rating: 20 Amp, 125V AC, 60Hz
-
Configuration: NEMA 5-20R, 2-Pole, 3-Wire
-
Trip Level: 4–6 mA
-
Trip Time: < 0.025 sec
-
Interrupt Rating: 10,000 A
-
Working Voltage: 102V–132V
-
Wiring: Back & Side Wire
-
Operating Temperature: -35°C to 66°C (-30°F to 150°F)
-
Humidity: Up to 95%
-
Material: Thermoplastic face & body, brass contacts
-
Certifications: UL 943, UL 498, UL Listed (E508043), CSA, NEC compliant, NOM
-
Dimensions: 4.07" H × 1.71" W × 1.56" D
Applications
-
Residential: Bathrooms, kitchens, basements, garages, laundry areas
-
Commercial: Offices, retail stores, restaurants, hotels
-
Institutional: Schools, laboratories, restrooms, public facilities
-
Wet/Damp Locations: Ideal for areas requiring ground-fault protection near water sources
